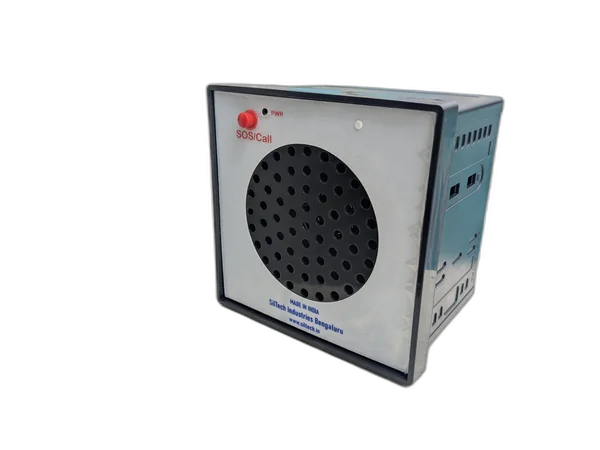

VoiceBox v2
Industrial Voice Announcement System
Versatile audio announcement unit with GSM, 2-way calling, and RS232/TTL for automated alerts and voice prompts.
| Input Power Supply | 7-40V DC (Min 500mA - Max 2A) |
|---|---|
| Communication | Selectable between RS232 Serial or TTL UART with configurable baud rate |
| Audio Capacity | 160 audio files |
| Total Audio Storage | 2000 seconds |
| File Size Limit | 96 KB per Audio (customizable) |
| Audio Format | 8-bit mono WAV, 8 kHz |
| Playback Control | Triggered by predefined voice codes |
| SIM Slot | Nano SIM with Mechanical Lock |
| SMS Commands | Supports SMS command for configurations and alerts |
| Audio Output | 3-inch, 4Ω, 10W speaker with integrated amplifier |
| Terminal | Clamp Cage Screw Terminal |
| Enclosure | ABS plastic, black |
| Dimensions | 95 × 90 × 80 mm |
| Mounting | Bottom mounting with Base Plate / Panel mounting with Socket and screw |
| Weight | 200g |
| Certifications | RoHS Compliant |
| Warranty | 1 Year |
About VoiceBox v2
The VoiceBox is a versatile audio announcement unit designed for integration into industrial, automotive, and public information systems. It receives predefined voice codes via RS232/TTL communication and plays corresponding stored audio messages. With OTA (Over-the-Air) update support, rugged construction, and multiple language capability, the VoiceBox is built for reliable performance in demanding environments. Features integrated 10W speaker, microphone for two-way calling, and GSM-based voice & SMS communication.
